BAFANG Mid Drive Kit Motor 36V 48V E-Bike Battery

BAFANG Mid Drive Motor 36V 48V Electric Bicycle Conversion Kit e-Bike Battery

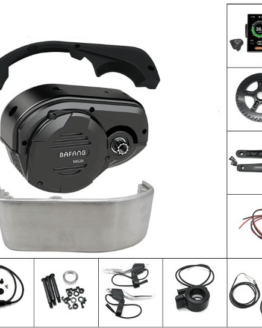

Packaging includes:

1*Bafang mid drive motor

1Pair*Brake lever

LCD Display

1Pair*Chainwheel

1 Set * Throttle

1 Pair * Crank

1 Set * Speed Sensor

1 * 4 in 1 Cable

1 * Accessories



Description

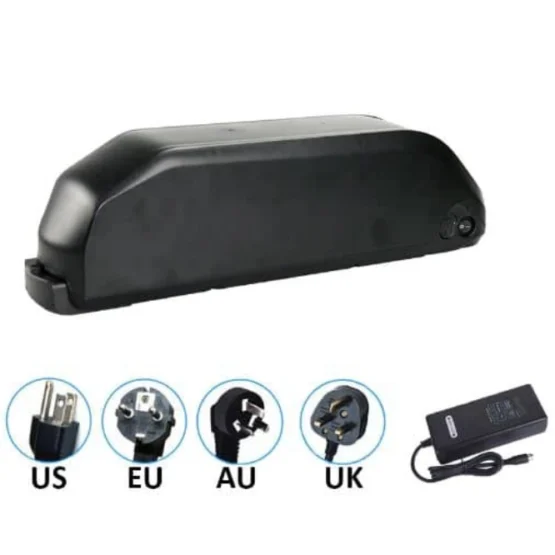

BAFANG Mid Drive Motor Battery 36V 48V Electric  Conversion Kit e-Bike Bicycle Battery

Hot promotions in bafang motor: Great news!!!You’re in the right place for bafang motor. By now you already know that, whatever you wanted all life – Bafang mid-motor!!!
Basic Characteristics of BAFANG Mid Drive Motor 36V 48V Electric Conversion Kit e-Bike Battery
Weight              ≤ 3.5kg
Working temperature
Charge Temperature          0~45°C
Discharge Temperature     -20~65°C
Retention of charge (store in one month) ≥95%Technical Data
Rated Voltage                     36V, 48V
Rated Capacity C1 ≥     10Ah 13AH 14.5AH 17.5AH
Battery Resistance ≤          100mΩ
Charge
Way of Charge     CC/CV(Constant Current;Constant Voltage)
Standard Charge Current    2A
Max Charge Current            5A
Max Charge Voltage            42V
Cell OverCharge Protection Voltage 4.2V/Cell
Discharge
Continouns Discharge Current      20A can be customized
Peak Discharge Current                 55A can be customized
Discharge Cut-off Voltage             30V
Cell Overdischarge Protection Voltage 3.0V/cell
Ratio Discharge
1C         >96%C1
2C         >93%C1
3C         >90%C1
Cycle Life ≥ 800 Cycles
Bafang, one of the leading manufacturers of e-mobility components and complete e-drive systems, has been developing components and complete systems for electric vehicles since 2003. The company focuses on all global e-mobility trends of the future: be it as an individual e-bike, e-scooter or for public bike sharing schemes.
